Benchmarks

This page collects the performance measurements for beman::big_int, together with the methodology behind them. There are two complementary stories:

  • Small-value optimization compares big_int against the native builtin integer types on the four basic operations, showing that small values are handled without heap allocation.

  • Large integers compares big_int against the two established arbitrary-precision libraries, Boost.Multiprecision’s cpp_int and GMP (gmp_int), at operand sizes from thousands to millions of digits, and explains the algorithm tiers that get it there.

The two suites were measured on different machines and build configurations, so do not compare a number from one against a number from the other; each table is internally consistent and notes its own environment.

Small-value optimization: big_int vs the builtin integer types

A basic_big_int<N> keeps an inplace buffer of ceil(N / 64) limbs, and as long as a value’s magnitude fits there it is stored directly inside the object with no heap allocation (see the type design). The default big_int is basic_big_int<64>, so a single 64-bit limb lives inplace; basic_big_int<128> keeps two. This suite quantifies that optimization by timing +, -, *, and / for big_int next to the native builtin integer types, using Google Benchmark for the measurement loop. It is built from small_value_optimization.gbench.cpp.

Three tiers are measured for every operation:

  • 64-bit tier — std::int64_t against the default big_int (basic_big_int<64>, one inplace limb). Operands are sized so the result stays within 64 bits, so big_int never leaves inplace storage.

  • 128-bit tier — compares int128 with basic_big_int<128> (two inplace limbs), the natural same-width counterpart. Built only where int128 exists.

  • Large (heap) contrast — the same big_int operations on multi-limb, heap-allocated operands (roughly 2^320 and 2^256), to show the cost once a value outgrows the inplace buffer and the optimization no longer applies.

Building and running

Google Benchmark is pulled in with CMake FetchContent (just like GoogleTest), gated behind the BEMAN_BIG_INT_BUILD_BENCHMARKS option. It is off by default and only meaningful in a release build, so dedicated release presets enable it:

# Pick the preset for your platform: gcc-release-benchmarks,
# llvm-release-benchmarks, appleclang-release-benchmarks, msvc-release-benchmarks.
cmake --preset appleclang-release-benchmarks
cmake --build --preset appleclang-release-benchmarks \
    --target beman.big_int.benchmarks.small_value_optimization

./build/appleclang-release-benchmarks/tests/beman/big_int/perf/beman.big_int.benchmarks.small_value_optimization

Equivalently, add -DBEMAN_BIG_INT_BUILD_BENCHMARKS=ON to any release preset. The executable accepts the usual Google Benchmark flags, for example --benchmark_repetitions=7, --benchmark_filter=multiply, or --benchmark_min_time=0.2s.

Results

Representative medians in nanoseconds per operation, measured on Apple silicon with AppleClang and a RelWithDebInfo build. Absolute numbers are machine-dependent.
Operation std::int64_t big_int (1 limb) __int128 basic_big_int<128> (2 limbs) big_int (multi-limb, heap)

+

0.23

3.8

0.25

3.4

15.7

-

0.23

4.2

0.24

3.9

16.1

*

0.23

1.7

0.37

5.0

30.1

/

0.46

6.2

3.2

11.6

49.8

How to read this:

  • The small-value optimization is the gap between the small-big_int columns and the heap column. A one- or two-limb big_int operation costs a few nanoseconds and allocates nothing, while the same operation on a multi-limb operand is roughly 4x—​10x slower because every result is heap-allocated. Keeping small values inplace is what closes that gap.

  • The builtin columns land at a few tenths of a nanosecond because the operation itself is nearly free and the timing is dominated by a fixed DoNotOptimize fence that stops the compiler from hoisting or deleting the work. That fence is identical in every cell, so read the table across a row (relative cost) rather than as the absolute cost of a single instruction.

  • Even against the builtins the small-value path stays within a small constant factor, and for division the two-limb path of big_int (11.6 ns) is in the same ballpark as the native __int128 divide (3.2 ns), which is itself a library call rather than a single instruction.

Large integers: big_int vs Boost.Multiprecision and GMP

At large operand sizes the relevant comparison is against the established arbitrary-precision libraries: Boost.Multiprecision’s cpp_int and GMP (wrapped by Boost as gmp_int). GMP is hand-coded assembly in its hot paths and is the industry standard for performance, so it is the natural baseline.

The multiplication and division comparison tables below were measured on an x86-64 machine with the SIMD multiplication path enabled (configured with -DBEMAN_BIG_INT_SIMD_MUL=ON, so the FFT tier uses the AVX2 kernel); see Optional: SIMD-accelerated multiplication. In those two tables, bracketed values are time relative to the fastest (GMP), where [1.0] is best.

Real-world gauge: ECDSA over secp256k1

This test gives an intuitive, end-to-end view of big-integer arithmetic in elliptic-curve algebra: round-trip 256-bit ECDSA (secp256k1) key generation, signing, and verification, run once with pre-defined seeds and again over 32 trials with random seeds. It is not a tuned ECDSA implementation but an overall performance gauge at modest integer widths, exercising a wide range of binary and unary operations and allocations, and it is timed end to end. Runs with beman::big_int, boost::cpp_int, and boost::gmp_int are compared. Source: elliptic_ecc.perf.cpp.

Integer type Time [s] Relative

beman::big_int

2.0

1.3

boost::cpp_int

1.7

1.1

boost::gmp_int

1.6

1.0

Multiplication

Multiplication graduates to successively higher-order algorithms as the operand limb count grows. Below 48 limbs it uses schoolbook multiplication; above 48 limbs it crosses over to Karatsuba. Successive Toom-Cook orders of 3, 4, 6.5, and 8.5 cross over at 400, 1,600, 2,400, and 15,000 limbs respectively on the non-SIMD path. The FFT tier (a small-prime number-theoretic transform) crosses over at 24,000 limbs on the non-SIMD path and at 4,500 limbs on the SIMD path — so the SIMD path does not use Toom-Cook 8.5 at all.

To isolate a single tier, only the big_int multiplication itself is timed: a stopwatch is read immediately before and after the multiplication, and the times are summed and averaged over many trials. Runs use limb counts chosen both to straddle crossover points (for example the Karatsuba-to-Toom-Cook boundary) and to land squarely inside one algorithm’s range, so its complexity can be observed in as isolated a way as possible. By temporarily overriding the compiled-in cutoffs, individual tiers can be excluded and then added back — schoolbook only, then Karatsuba only, then Karatsuba plus Toom-Cook 3, and so on.

  • All runs were numerically correct.

  • Around 300—​400 limbs, Toom-Cook 3 and 4 already become clearly beneficial.

  • Higher Toom-Cook orders show similar trends; rather than tabulating each, they are summarized by the empirical timings below.

Algorithm-tier progression

The table below shows the time per multiplication as successive tiers are enabled at increasing operand widths. Times are microseconds per multiplication; n/a marks a tier not measured at that width.

64-bit limbs Binary digit width Schoolbook With Karatsuba Up to Toom-Cook 3 Up to Toom-Cook 4 Up to Toom-Cook 6.5

700—​1,400

44,800—​89,600

1,270

380

370

n/a

n/a

6,000—​8,000

384,000—​512,000

n/a

8,220

6,240

n/a

n/a

10,000—​12,000

640,000—​768,000

n/a

15,700

11,800

n/a

n/a

21,000—​23,000

1,344,000—​1,472,000

n/a

n/a

33,100

27,800

n/a

43,000—​45,000

2,752,000—​2,880,000

n/a

n/a

n/a

72,300

59,700

Empirical complexity of the Toom-Cook tiers

The empirical order of complexity x follows from the ratio of the last two rows for each tier, treated as a doubling of the operand width (2^x = t_2 / t_1):

  • Toom-Cook 3: 2^x = 33,100 / 11,800, giving x approximately 1.49, against a theoretical log_3(5) approximately 1.465 — in good agreement.

  • Toom-Cook 4: 2^x = 72,300 / 27,800, giving x approximately 1.39, against a theoretical log_4(7) approximately 1.404 — again in good agreement.

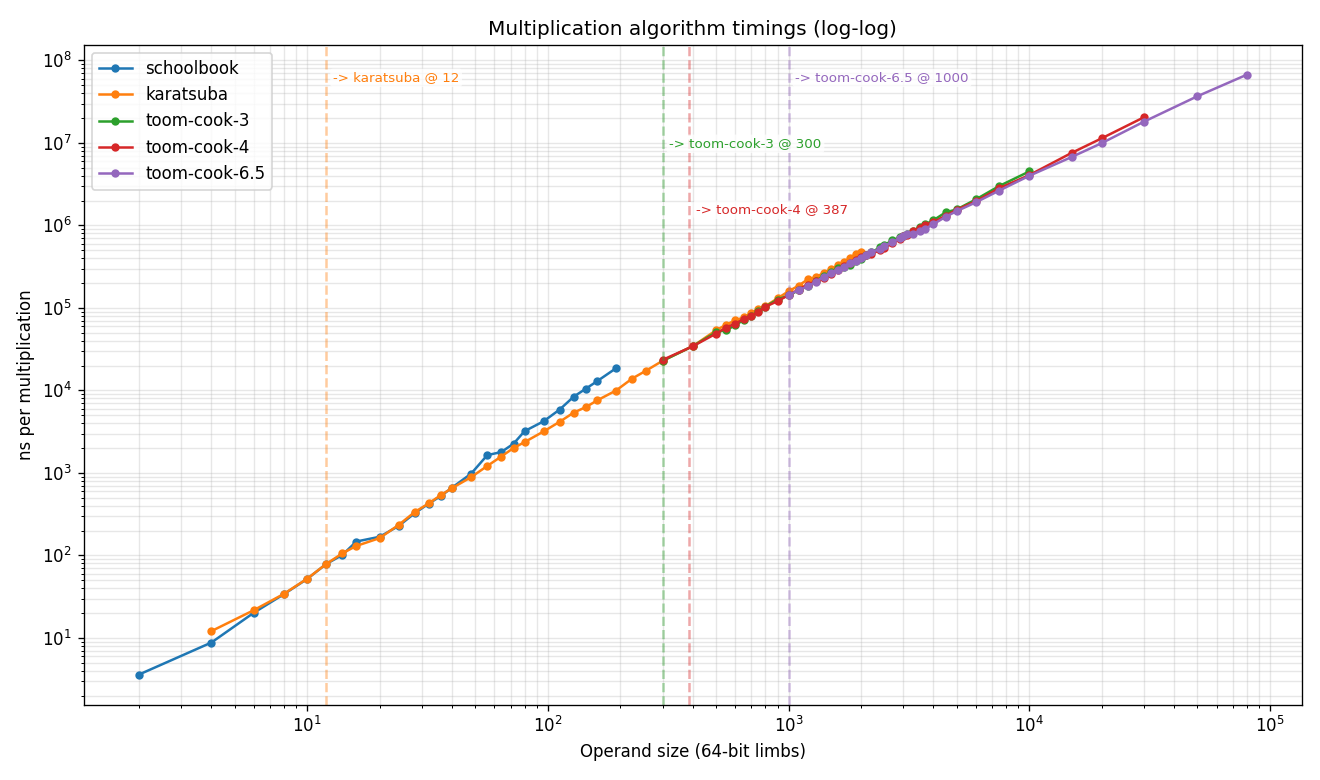

The plot below shows multiplication time against operand limb count across many orders of magnitude. The crossover points between successive schemes were chosen to optimize multiplication speed across the whole range of limb counts.

Multiplication algorithm crossover plot
Figure 1. Multiplication time vs operand limb count, with the algorithm-tier crossovers

big_int vs cpp_int vs gmp_int

The result of a multiplication adds the widths of its operands, so each row multiplies two operands of the stated width and the product is twice as wide. Source: mul_big_int_vs_gmp_cpp.perf.cpp; pass an operand width in limbs (and optionally a trial count) on the command line to reproduce a row.

64-bit limbs Bit width Approx base-10 digits us per mul big_int us per mul cpp_int us per mul gmp_int

128

8,192

2,500

9.8 [2.2]

8.2 [1.9]

4.4 [1.0]

512

32,768

9,900

67 [2.5]

64 [2.4]

27 [1.0]

1,024

65,536

20,000

199 [2.7]

190 [2.6]

73 [1.0]

2,048

131,072

39,000

564 [3.0]

580 [3.0]

190 [1.0]

8,192

524,288

160,000

4,100 [3.2]

5,200 [4.1] (see 2)

1,300 [1.0]

32,768

2,097,152

631,000

17,000 [3.2]

47,000 [8.8]

5,300 [1.0]

131,072

8,388,608

2,525,000

72,000 [2.7] (see 1)

420,000 [15.7]

27,000 [1.0]

  1. With its FFT tier, big_int tracks GMP’s asymptotic complexity and stays within roughly 3x of GMP across the entire range, including the largest sizes where it previously fell behind (about 5.3x at 131,072 limbs before the FFT existed).

  2. cpp_int only reaches as high as Karatsuba multiplication, so both big_int and gmp_int pull ahead at medium-high digit counts; the lead big_int has over cpp_int grows to roughly 6x by 131,072 limbs.

A finer-grained sweep over mixed limb counts (4 to 30,000 limbs) shows the same trend, with big_int within roughly 2x—​3x of GMP across the whole range; many millions of trials were run with both performance and numerical-correctness checks. See mul_big_int_vs_gmp_cpp.limbs.cpp.

Division

Division uses Knuth long division for small limb counts and crosses over to the Burnikel-Ziegler algorithm between roughly 40 and 100 limbs; above that its performance is driven by the underlying multiplication. As with multiplication, only the big_int division itself is timed, with a stopwatch read immediately before and after the operation and the times summed and averaged over many trials. Each row divides an N-digit numerator by an N/2-digit denominator, producing an N/2-digit quotient. Source: div_big_int_vs_gmp_cpp.perf.cpp.

64-bit limbs Bit width Approx base-10 digits us per div big_int us per div cpp_int us per div gmp_int

128

8,192

2,500

4.2 [2.5]

10.4 [6.1]

1.7 [1.0]

512

32,768

9,900

32 [1.7]

120 [6.7]

18 [1.0]

1,024

65,536

20,000

120 [2.3]

420 [7.9]

53 [1.0]

2,048

131,072

39,000

360 [3.0]

1,500 [13] (see 1)

120 [1.0]

8,192

524,288

160,000

2,800 [2.9]

23,000 [24]

950 [1.0]

32,768

2,097,152

631,000

23,000 [3.8]

370,000 [62]

6,000 [1.0]

  1. cpp_int uses a variant of Knuth long division at all limb counts, which is quadratic, so big_int and gmp_int pull ahead rapidly at medium-high digit counts; the lead big_int has over cpp_int grows to roughly 8x by 8,192 limbs.

A finer-grained sweep over mixed limb counts (4 to 30,000 limbs) shows the same trend, with big_int within roughly 2x—​4x of GMP across the whole range; again many millions of trials were run with both performance and numerical-correctness checks. See div_big_int_vs_gmp_cpp.limbs.cpp.

Base conversion and string representations

Sub-quadratic base conversion underlies the library’s <charconv> support (the to_chars and from_chars functions and the primitives beneath them), giving a convenient interface for converting big integers to and from their string representations. The performance of these operations is governed primarily by the efficiency of the underlying multiplication and division algorithms described above. This holds for converting to and from string representations in any base other than 16. For base 16, the string conversions have linear complexity.

Order-N operations

Addition, subtraction, bit-shift, comparison, and hashing are linear in the limb count and are not tabulated separately here. Their behavior at builtin widths, where the small-value optimization keeps them allocation-free, is covered in the small-value section above.

Source programs

The programs behind these measurements live in tests/beman/big_int/perf.

Source file Description

small_value_optimization.gbench.cpp

Google Benchmark comparison of big_int add/sub/mul/div against the builtin integer types, showcasing the small-value (inplace, no-allocation) optimization.

elliptic_ecc.perf.cpp

Elliptic-curve cryptography (ECDSA) overall performance gauge at modest limb counts.

mul_big_int_vs_gmp_cpp.perf.cpp

Multiplication performance with mixed limb counts, with timing and numerical-correctness checks.

mul_big_int_vs_gmp_cpp.limbs.cpp

Multiplication performance with fixed limb counts and timing.

div_big_int_vs_gmp_cpp.perf.cpp

Division performance with mixed limb counts, with timing and numerical-correctness checks.

div_big_int_vs_gmp_cpp.limbs.cpp

Division performance with fixed limb counts and timing.
